Description

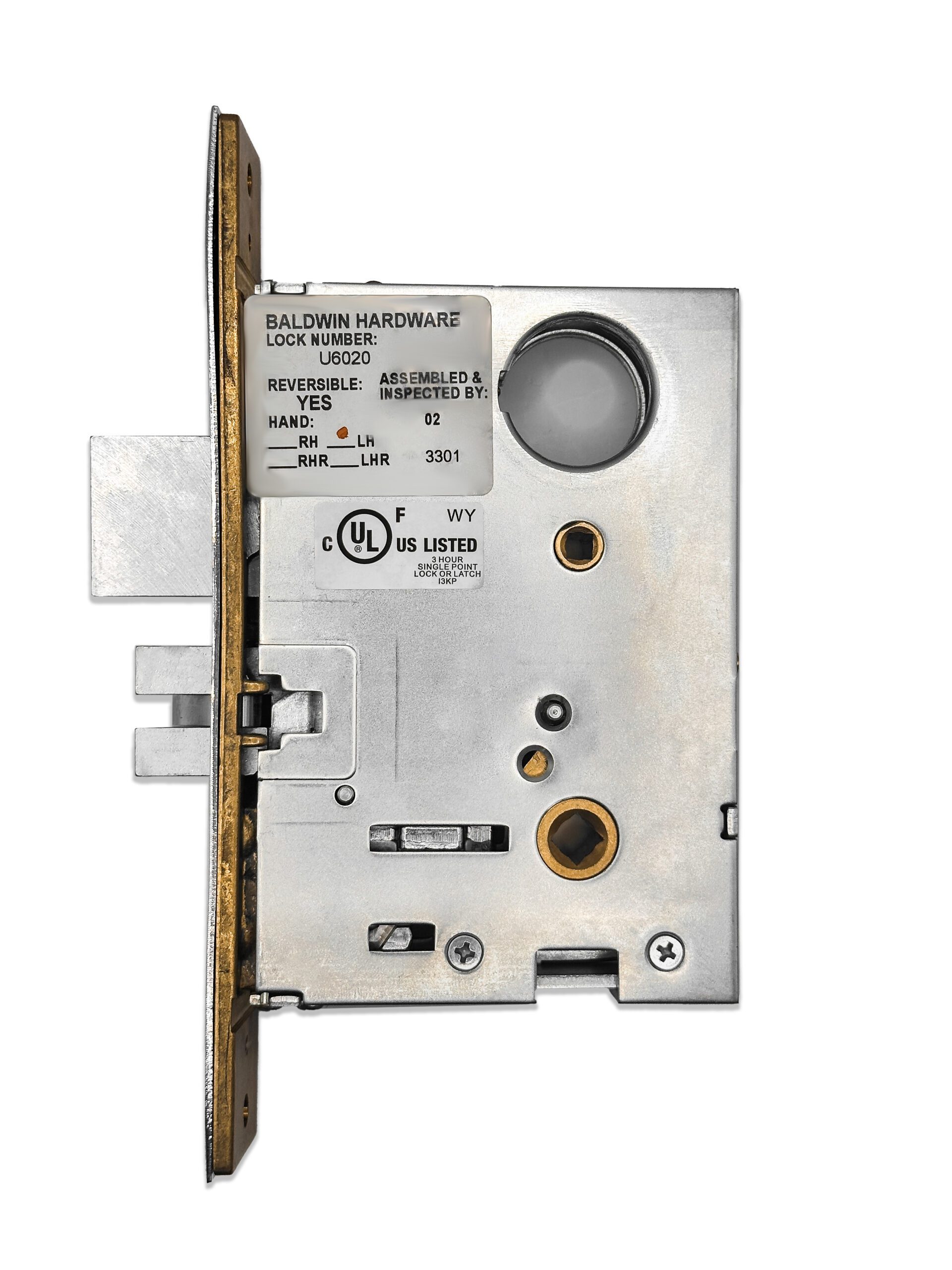

“Mortise Lock comes with (6040) ASA Strike as standard. Latch bolt by knob from either side, except when outside knob is locked by stop in front, then latch bolt by key outside and knob inside. Deadbolt by key outside and turn piece inside. Continuous turn of key outside retracts both latch and deadbolt. 1 in. throw Deadbolt with saw-proof inserts is standard equipment. Not available for 2 in. or smaller backsets. When extended, Deadbolt deadlocks latch bolt.
Features

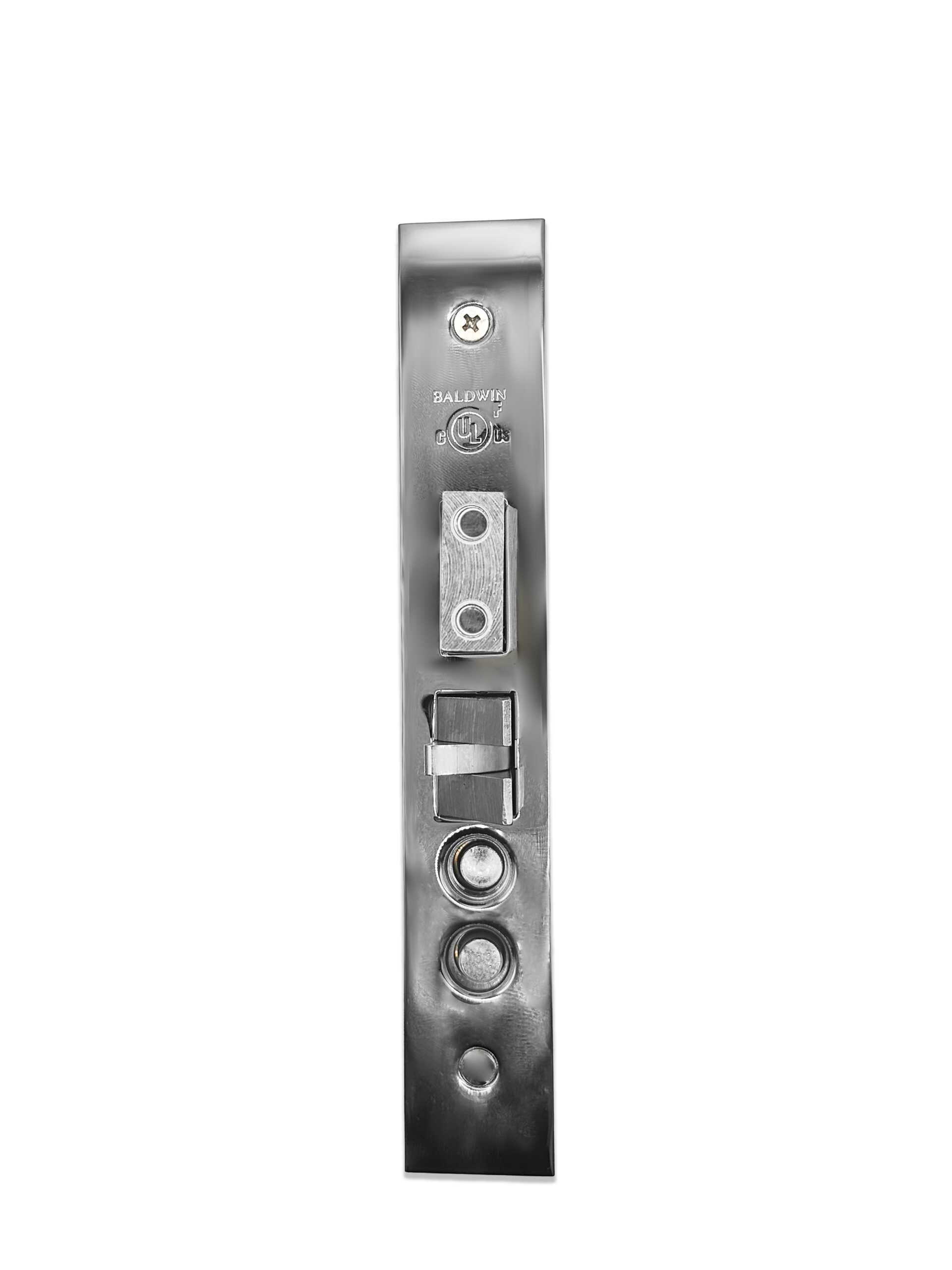

Baldwin Estate 6020 (2.75″” backset)
Latch bolt by thumb piece outside and knob/lever inside, except when thumb-piece is locked by stop in front; then latch bolt by key outside and knob/lever inside
Deadbolt by key outside and turn piece inside. Continuous turn of key outside retracts both latch and deadbolt.
1″” (25mm) throw deadbolt with saw-proof inserts is standard equipment.
Sold with Strike Plate and Face plate
When extended, deadbolt deadlocks latch bolt
For use with single and double cylinder applications”
