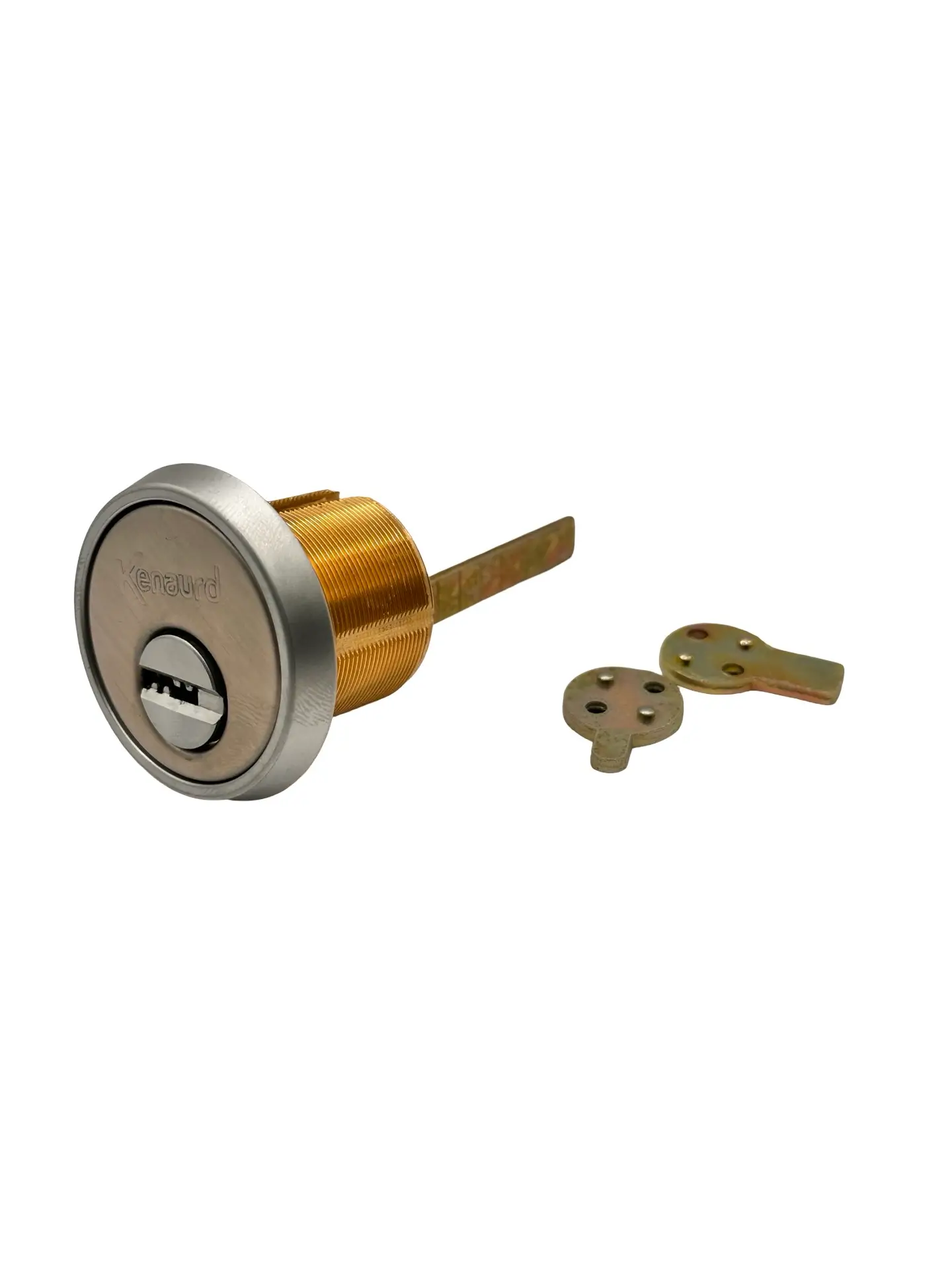

Key-Controlled Mortise Cylinder – Satin Chrome (US26D)
These key-controlled mortise cylinders are engineered for secure commercial and residential applications where access control is critical. Built with precision components and durable materials, this cylinder is ideal for doors that demand higher security and reliability.
Each unit includes five color-coded keys and a registration card used for authorized duplication.
Product Overview
• Heavy-duty mortise cylinder designed for enhanced security
• Recommended for high-traffic and controlled-access locations
• Compatible with most Grade 1 and Grade 2 mortise lock systems
• Works with narrow stile doors, aluminum storefronts, and exit devices
• Suitable for commercial, multi-family, retail, and office installations
Cylinder Details
• Size: 1-1/4 inch (31.75mm)
• Material: Solid brass body
• Internal type: Floating pin system
• Pin count: 5-pin configuration
• Finish: Satin Chrome (US26D)
• Includes decorative mortise trim ring
Keying System
• Pick-resistant #206 keyway
• Includes 5 original keys
• Authorized duplication card included
• Keys come with color identification inserts
• Supplied keyed alike (up to 12-cylinder sets)
Cam Configuration
• Includes two interchangeable cams
• Compatible with:
– Adams Rite-style (pre-installed)
– Yale-style
Packaging
• Each cylinder is individually packaged

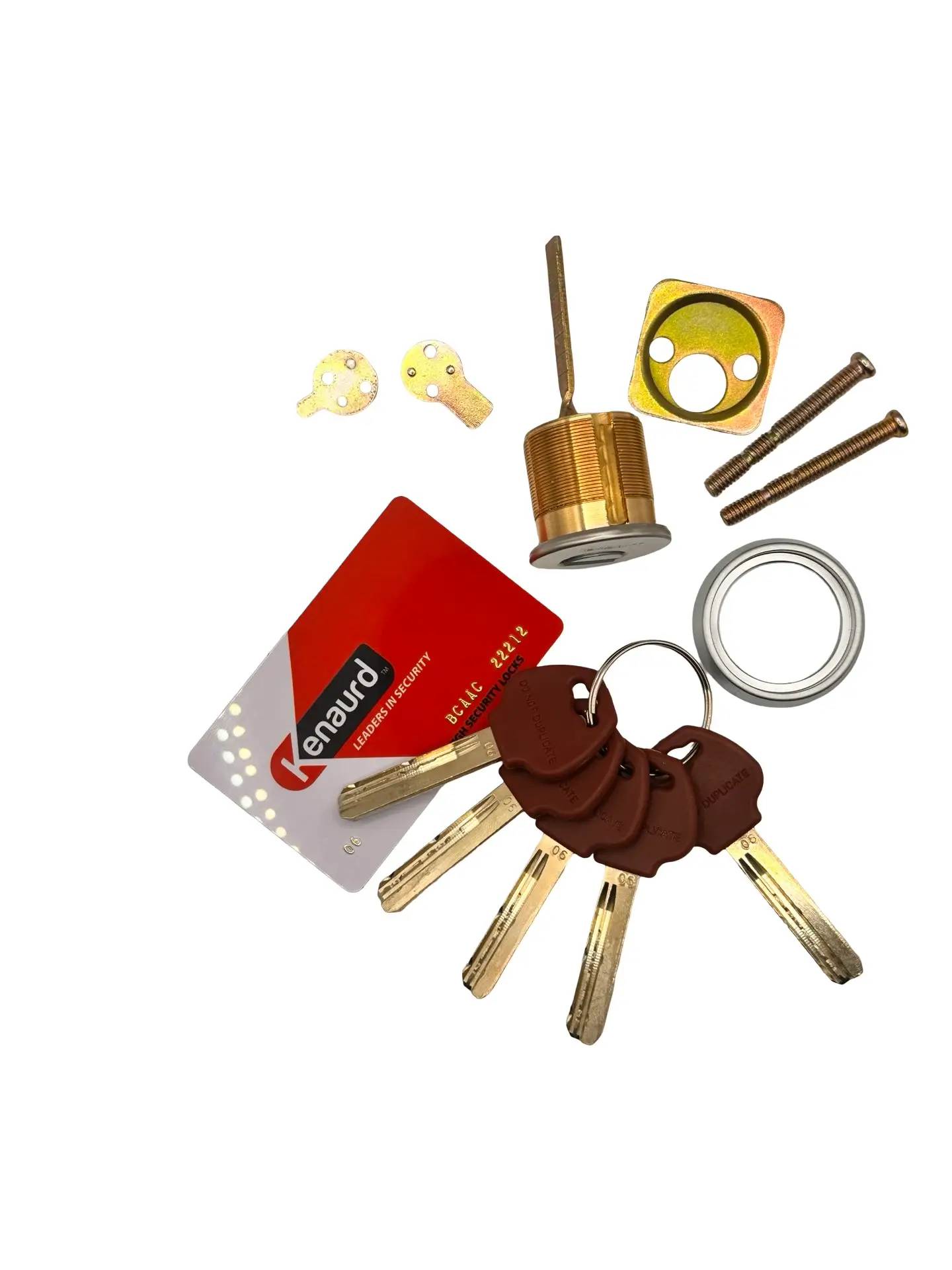

• Box includes:
– 1 cylinder
– 5 keys
– 1 duplication card
– Color key identifiers
• Case pack: 12 units per carton
• All cylinders in the case are keyed alike
Warranty
• Limited lifetime mechanical warranty
